HDMI Converter

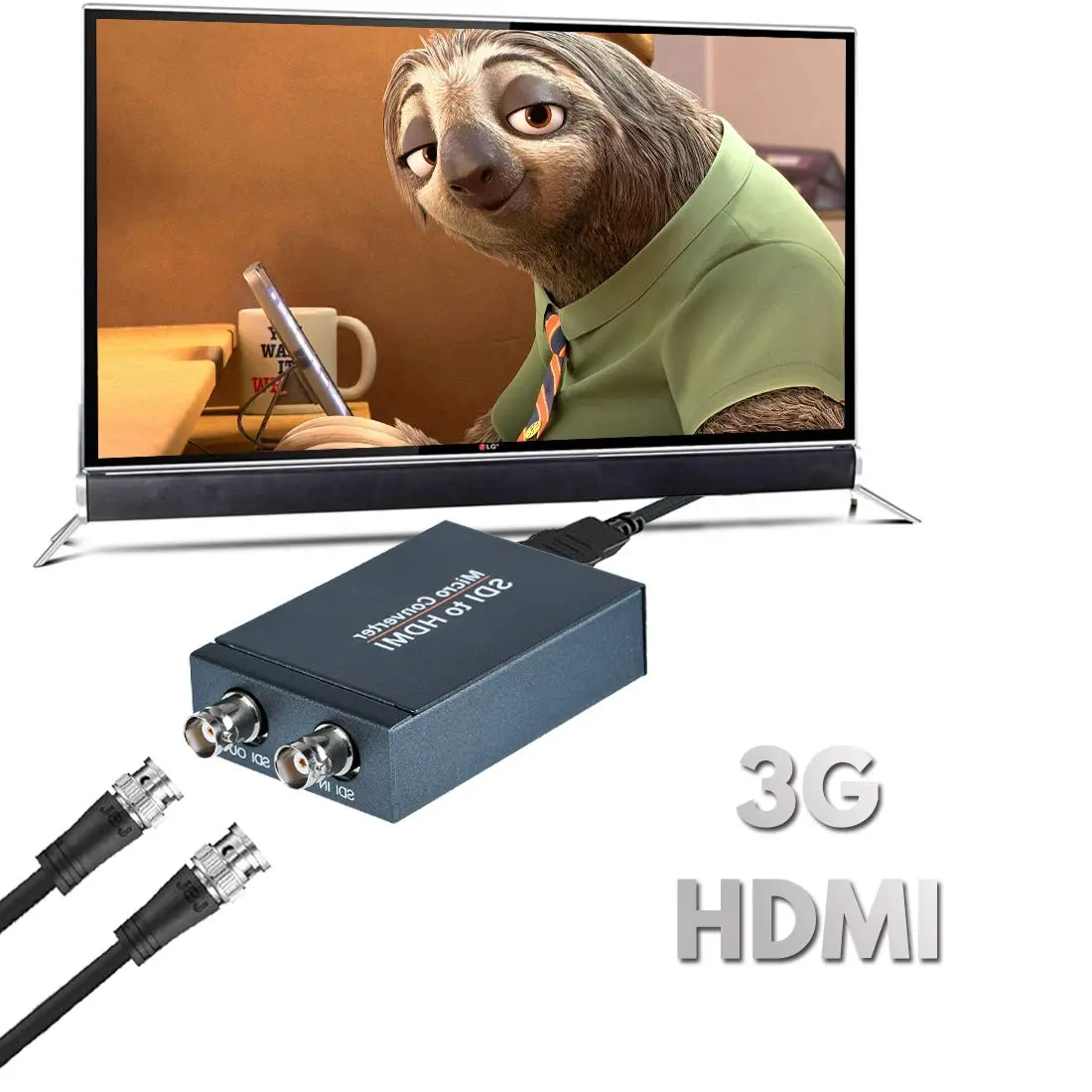

3G SDI to HDMI Converter Designed for professional SMPTE video applications, this 3G SDI to HDMI Converter allows you easily display your work on common HDMI displays. The loop-through design also allows you to view the original SDI content on an SDI monitor simultaneous with the HDMI display. This converter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI, and 3G-SDI video signals.
$34.99
Description
Key Point:
- SD/HD/3G-SDI Input：SDI to HDMI Micro Converter,Work well for nearly all 3G/HD SDI devices,such as Blackmagic Design ATEM STUDIO,RED Scarlet, BMD Atem, Security Camera, capture card, Campus TV network, DVR etc
- HDMI and SDI Loop Outputs：Support 1 HDMI output and 1 SDI Loop Output，The transferring data rate is up to 2.97Gbps. Support 8 channels of 48KHz sampling rate of digital audio
- Supports SD and HD Signals：Convert SDI to HDMI and SDI both or seperately, support 1920x1080P@60Hz,1920x1080I@60Hz,1280x720P@60Hz
- Automatic Input Signal Detection:Support Auto detection of SD or HD,Supports 10-bit Deep Color,Work as SDI Repeater & Extender with the Re-clock function and support multiple cascaded
- Broadcast Grade Quality:Durable Metal body, anti-corrosion and rust-proof, no static noise issue. Excellent heat radiation keeps favorable working temperature. Bolts and buckles design makes it ideal for industrial utilization
Specification:
- SDI Video input: 1xSD, HD or 3G-SDI

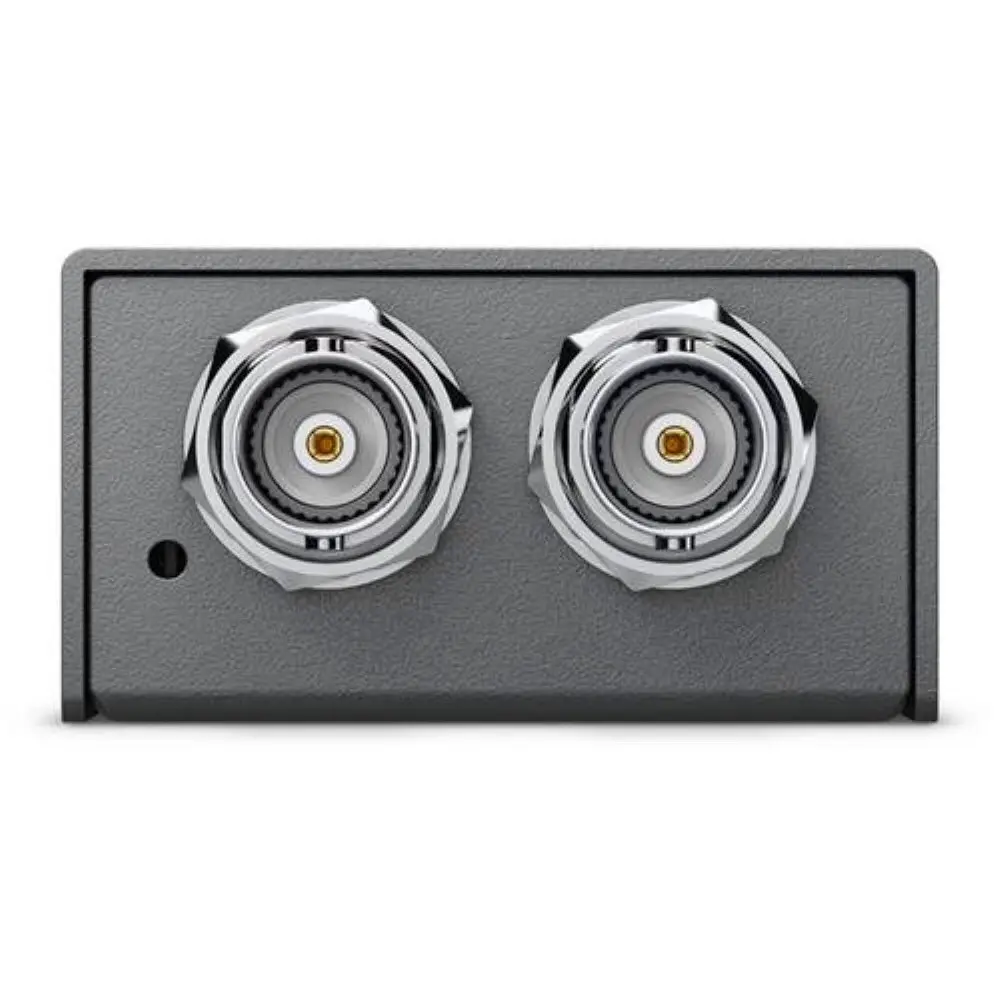

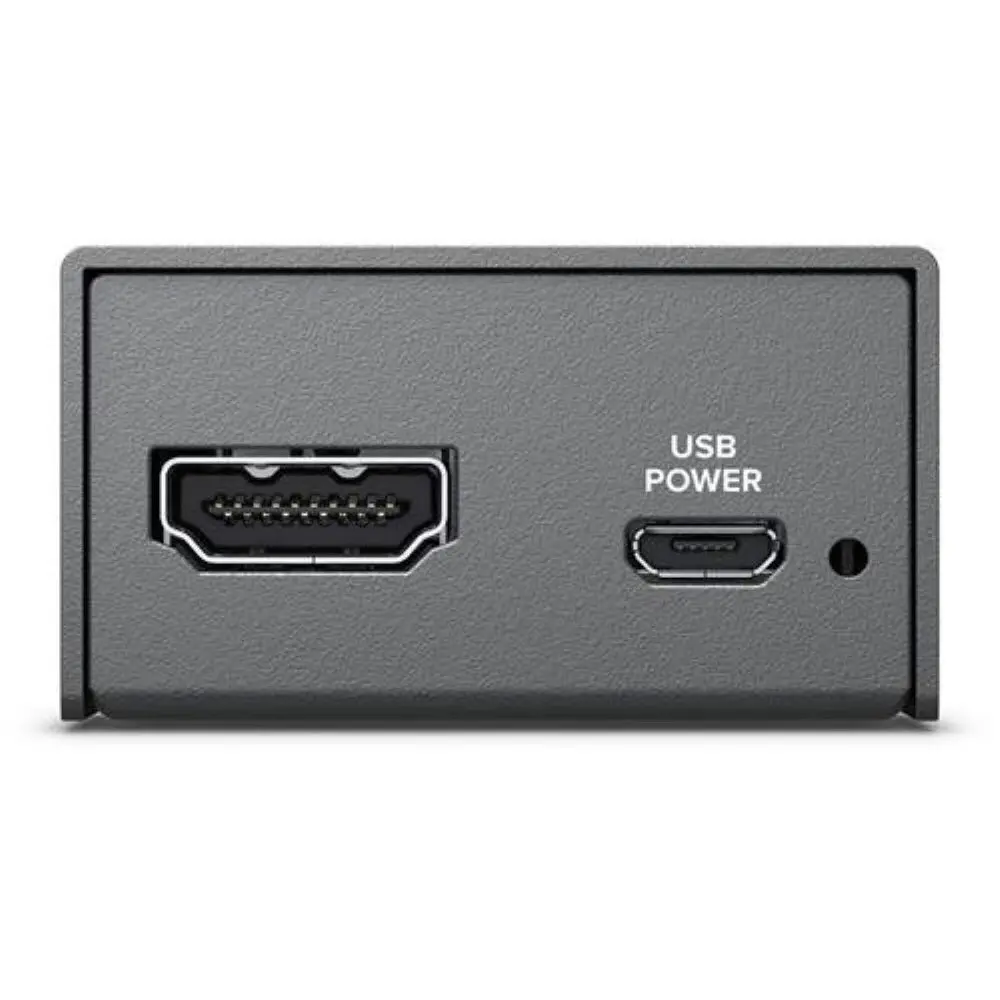

- Video output: 1xHDMI Type A out (1080P@60Hz), 1xSDI loop output
- Input audio signal: SDI embedded
- SDI Input resolutions:
720p@30, 50 and 60Hz
1080i@50, 60Hz
1080P 24, 25, 30, 50 and 60Hz
5.HDMI output Resolution:
720p@52,60Hz
1080i@50, 60Hz
1080P 24, 25, 30, 50 and 60Hz
- SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps
- One way SDI output, with the Re-clock function, can support multiple cascaded
Note:
- Only Support SDI signal,not support RF,CVBS,AHD,TVI,CVI.
- Only Support FHD 1080p,not support UHD 4K
- Its a SDI to HDMI Converter,cant be used reversed

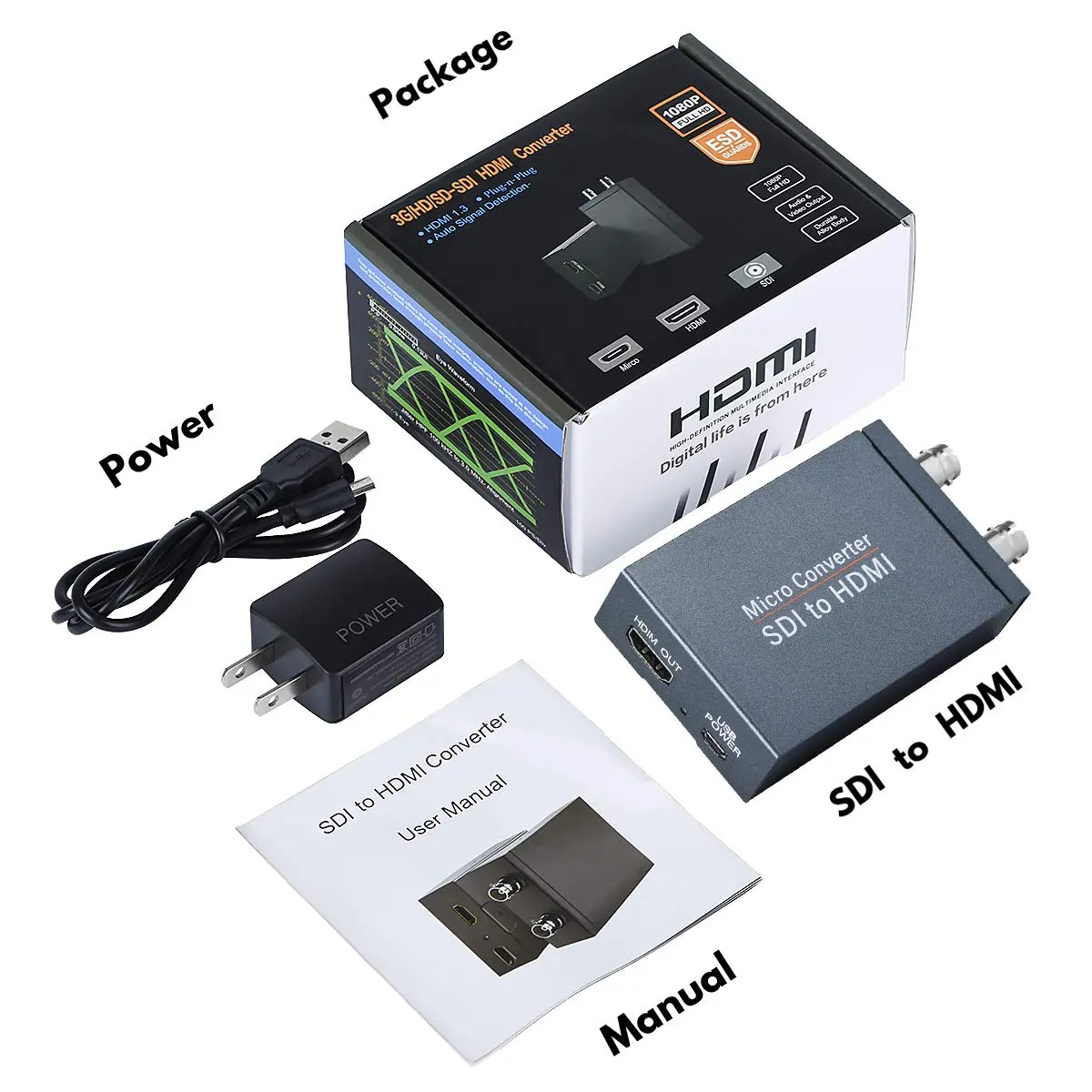

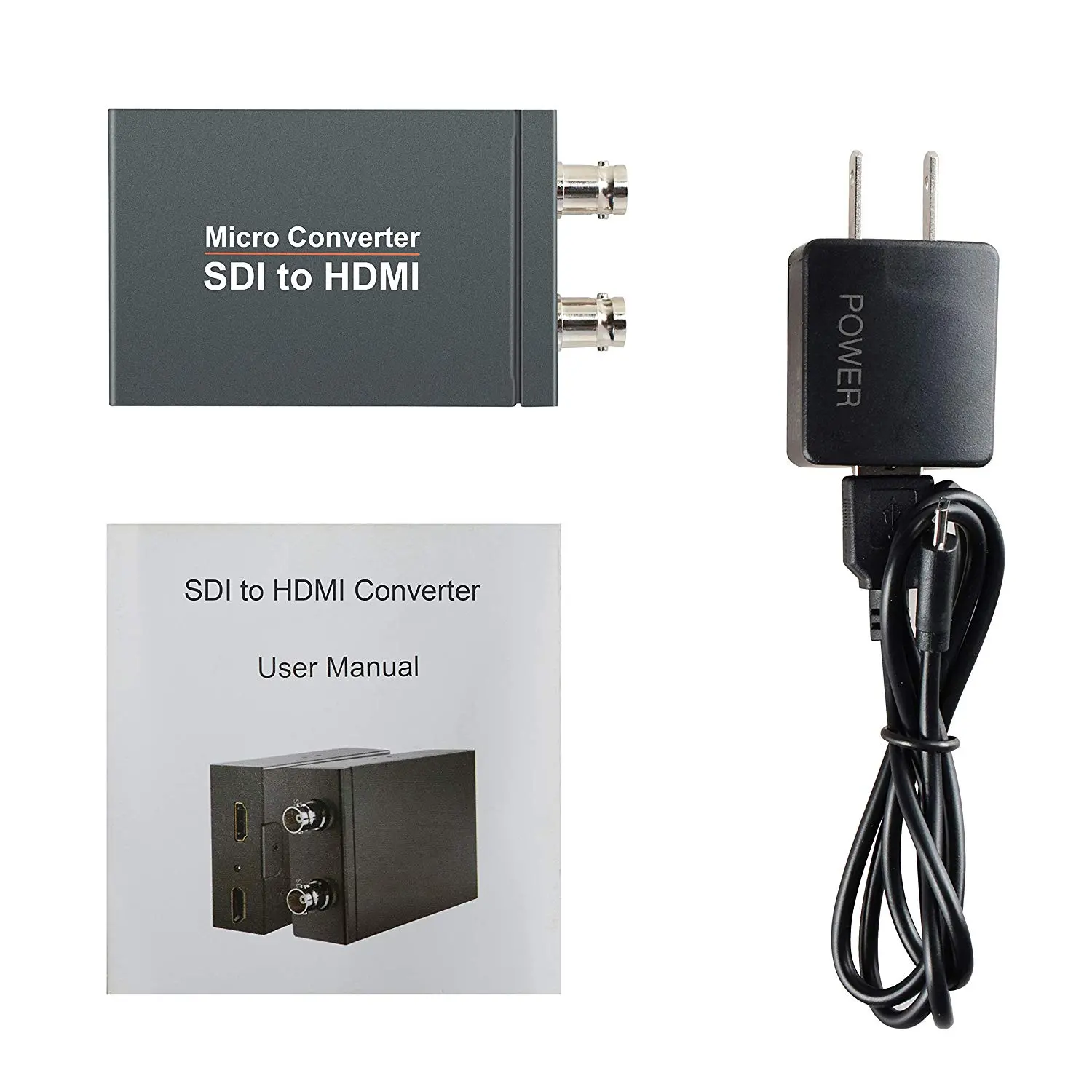

Package:
1 x SDI TO HDMI CONVERTER
1 x Power adapter
1 x Manual
